Choosing the correct Pneumatic Fitting Type for a particular application depends on several factors.  These factors include:

• Tubing type needed ( Inch or Metric, Thermoplastic or Metal, Size)

• Air pressure or P.S.I. requirement

• Thread type of fitting needed (pipe, British pipe, metric, SAE Straight Thread)

• Vibration concerns

• Fitting material needed(brass, stainless steel, thermoplastic, nickel plated brass)

• Approvals needed (for example: Department of Transportation, Underwriters Laboratory, FDA)

Once these determinations have been made, there are a wide array of fitting types to choose from.  What follows is a listing of the more popular styles available with a description of their uses.

COMPRESSION STYLE

Compression – Characteristics: No flaring or soldering needed. Tube compatibility: Available in inch dimension only, Copper, Aluminum, Thermoplastic; Thread availability: Male pipe , Female pipe; Body material: Brass

Compress-Align – Characteristics: No flaring or soldering needed, preassembled fitting with captive sleeve. Tube compatibility: Available in inch dimension only, Copper, Aluminum, TFE, PEA, PFA, Thermoplastic; Thread availability: Male pipe, Female pipe; Body material: Brass

Metru-Lok – Characteristics: One piece, preassembled fitting with captive ferrule; Tube compatibility: Available in metric dimension only, Copper, Aluminum, Thermoplastic; Thread availability: Male pipe, Female pipe, British parallel pipe, British tapered pipe, SAE Straight Thread, Metric; Body material: Brass

Poly-Tite – Characteristics: A preassembled compact fitting. The exclusive acetal copolymer sleeve resists stress caused by compression; Tube compatibility: Available in inch dimension only, Thermoplastic and soft metal tubing; Thread availability: Male pipe, Female pipe; Body material: Brass or stainless steel

Hi-Duty Flareless Tube Fittings – Preassembled fitting with a captive sleeve for high pressure applications (1000 to 4300 P.S.I.); Tube compatibility: Available in inch dimension only, Copper, Brass, Seamless Steel, Thermoplastic; Thread availability: Male pipe, Female pipe; Body material: Brass

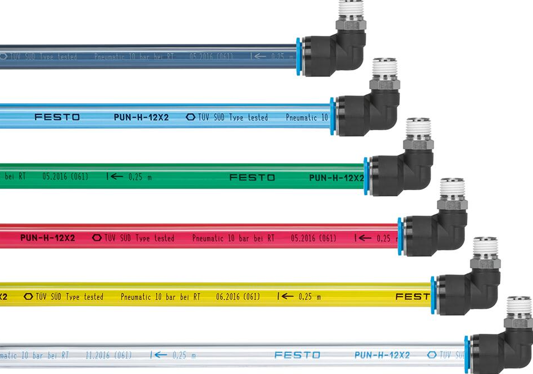

PUSH TO CONNECT STYLE

Prestolok Metal – Characteristics: One piece push to connect fitting for low pressure applications that allows for easy disassemble and reassemble. Come with a pre-applied thread sealant; Tube compatibility: Most Thermoplastic ( 85A Polyurethane excluded)  in both inch and  metric  dimensions; Thread availability: Male pipe,  Female pipe, British Parallel Pipe, British Tapered Pipe, Metric; Body material: Nickel Plated Brass

Prestolok Composite – Characteristics: One piece push to connect fitting with glass reinforced black nylon body; Tube compatibility: Nylon Semi-rigid, Polyurethane, Nylon, Fluorpolymer, available in both inch and metric dimensions; Thread availability: Male pipe, Female pipe, British Parallel Pipe, British Tapered Pipe, Metric; Body material: Silicone free glass reinforced nylon

PrestoWeld – Characteristics: Push to connect fittings that are weld splatter resistant and silicone free to meet the requirements of the robotic welding industry; Tube compatibility: Parker Microweld tubing; Thread availability: Male pipe, Female pipe, British Tapered Pipe; Body material: Nickel plated brass

BARBED FITTINGS

Dubl-Barb – Characteristics: Compact one piece, push on barbed fitting; Tube compatibility: Parker Polyethylene tubing; Thread compatibility: Male pipe, Female pipe, SAE Straight Thread; Body material: Brass

Hose Barb – Characteristics: Manufactured in both regular hose barb and beaded hose barb styles; Tube compatibility: Rubber Hose, GPH Hose, hose clamps required; Thread availability: Male pipe, Female pipe, SAE Straight Thread, Metric; Body material: Brass
