![VELVAC Standard Duty Tailgate Air Cylinders VELVAC Standard Duty Tailgate Air Cylinders](/data/attachment/202011/23/60cd4ca61b75d3c151cbaf80594a0131.png)
Name: | DNC 15552 (ISO6431) STANDARD CYLINDER |
---|---|
Working Medium:: | Fitered Air |
Motion Pattern: | Double Action |
Working Pressure: | 1.5MPa |
Max.Pressure: | 1.0MPa |
Min.Pressure: | 0.1MPa |
Buffer: | Air Buffer(Standard) |

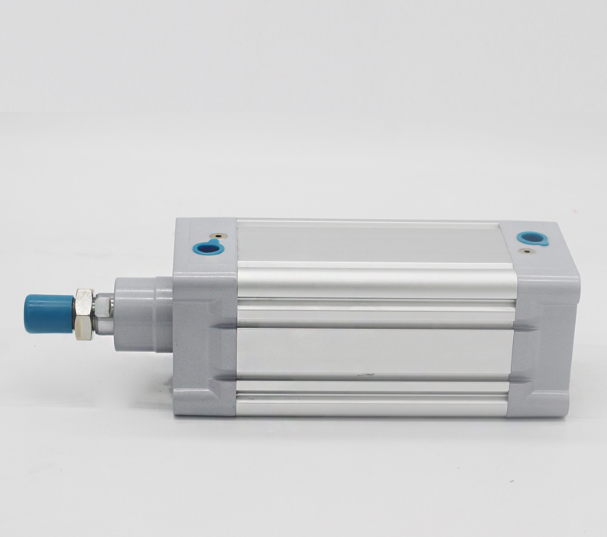

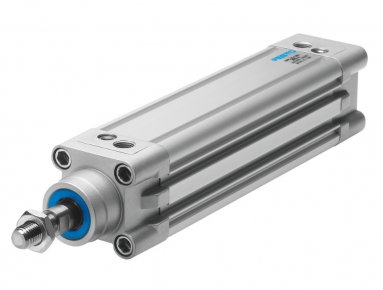

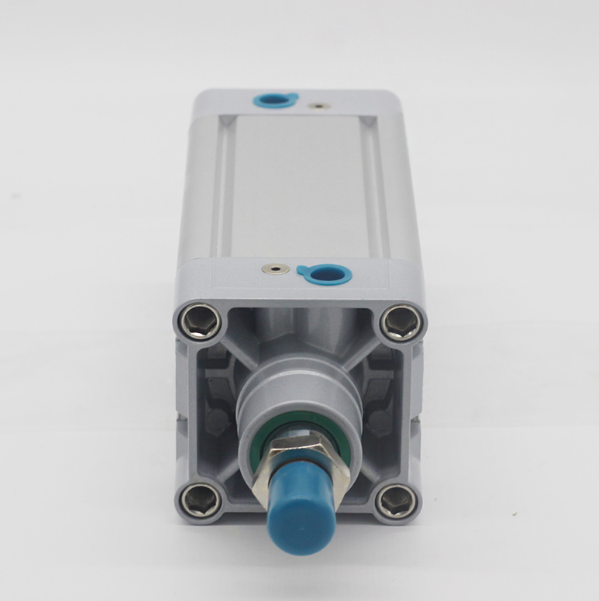

DNC Series Standard Cylinder (ISO15552)
Features:
1. The cylinder is in accordance with the ISO15552.
2. The piston seal adopts two NBR+PA material as Y type one-way sealing structure with compensation function, long service life and low starting pressure.
3. The rod seal uses PU material with the characteristics of high strength, good toughness, wear resistance,oil resistance and aging resistance.
4. The piston rod material is 45C Carbon Steel with hard chrome plating on the surface, roughness Ra<0.4, with good wear resistance and rust resistance.
