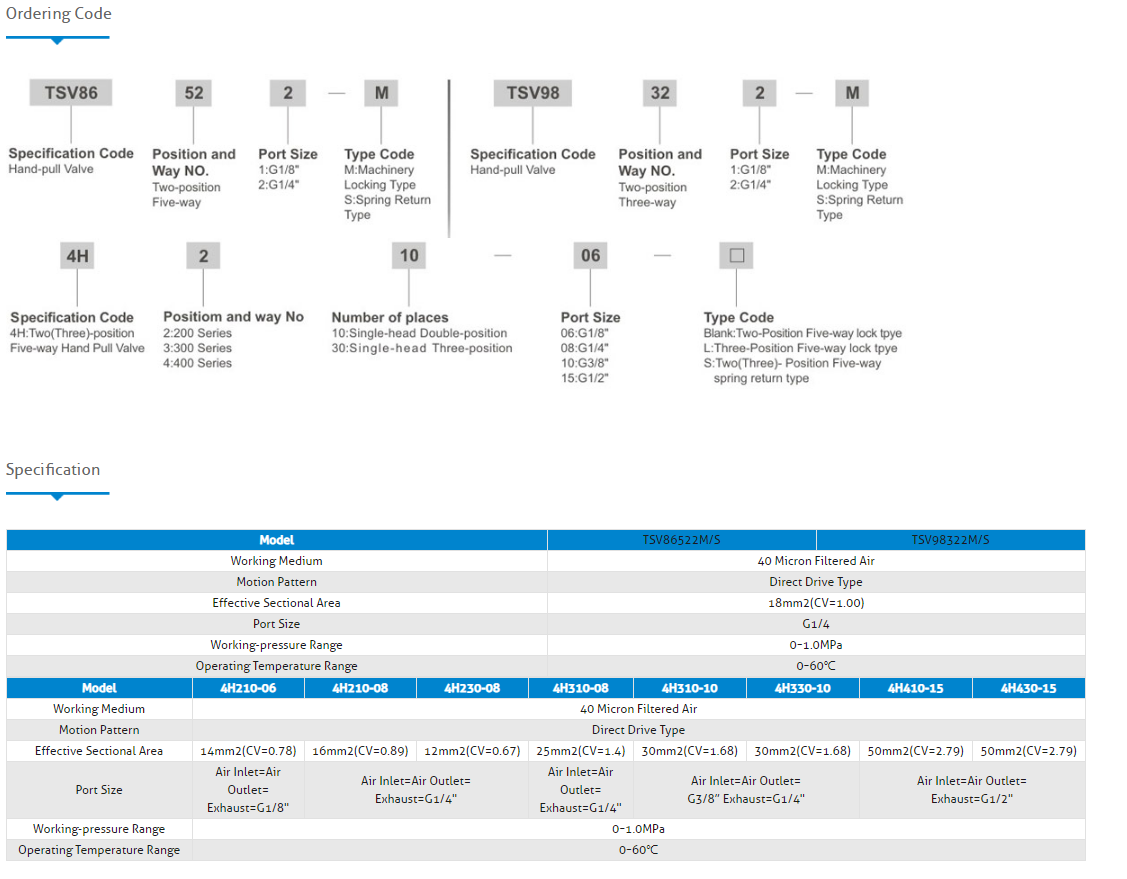

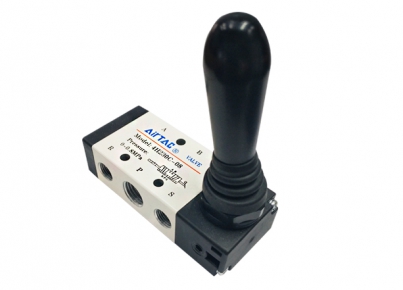

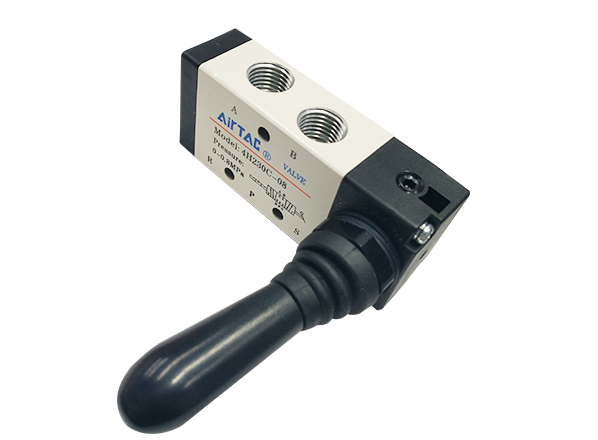

| Name: | TSV/4H Series hand-pull Valve |
|---|---|
| Working Medium: | 40 Micron Filtered Air |
| Motion Pattern: | Direct Drive Type |
| Effective Sectional Area: | 18mm2(CV1.00) |
| Port Size: | G1/4 |
| Working-pressure Range: | 0~1.0MPa |
| Operating Temperature Range: | 0~60℃ |
| Name: | TSV/4H Series hand-pull Valve |
|---|---|
| Working Medium: | 40 Micron Filtered Air |
| Motion Pattern: | Direct Drive Type |
| Effective Sectional Area: | 18mm2(CV1.00) |
| Port Size: | G1/4 |
| Working-pressure Range: | 0~1.0MPa |
| Operating Temperature Range: | 0~60℃ |
